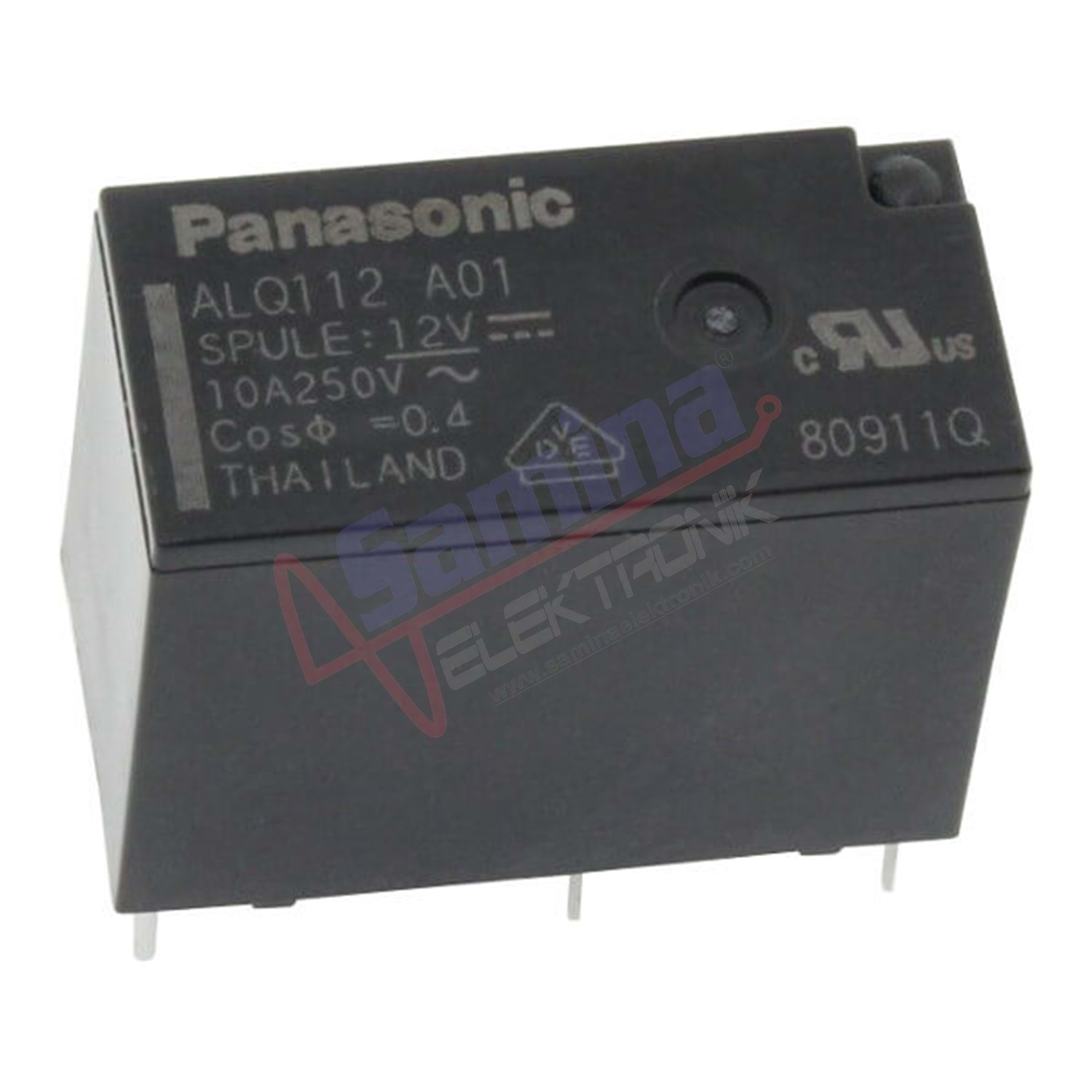

Röle - PANASONIC ALQ112A01 POWER 10A 12VDC 1FormC

Contact Form SPDT (1 Form C)
Coil Voltage 12VDC
Operating Temperature -40°C~+85°C
Relay Type Relay Power Small
Series ALQ
Coil Type Non Latching
Mounting Type THT
Contact Current (Max) 10A
Contact Voltage 250VAC/30VDC
Number of Pins 5 Pin
Coil Current 33.30mA
Length 20.00mm
Width 10.00mm
Rohs ROHS
Packaging TRAY
Manufacturer PANASONIC COMP.
Contact Current (Nom) 5A
Coil Resistance 360 Ohms
Coil Power 400mW
Height 15.60mm
