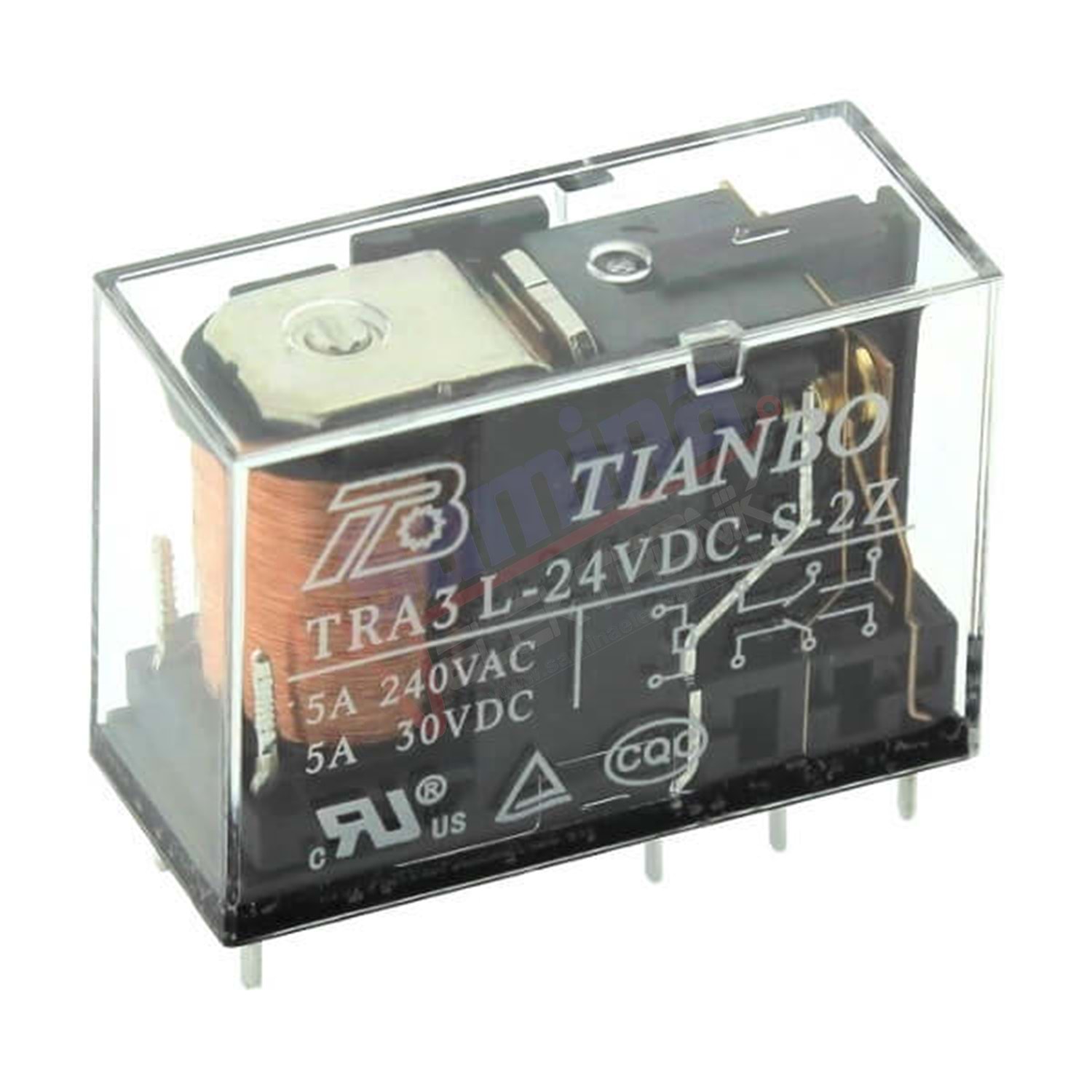

Röle - TIANBO TRA3-L-24VDC-S-2Z(2) POWER 5A 24VDC 2FormC PCB TYPE TRANSPARENT

Relay Type Relay Power
Coil Power 540mW
Length 29.00mm
Coil Type Non Latching
Contact Voltage 240VAC/30VDC
Manufacturer TIANBO
Series TRA3
Contact Current (Nom) 5A
Coil Resistance 1.05K Ohms
Operating Temperature -40°C~+85°C
Width 12.70mm
Height 20.40mm
Rohs ROHS
Packaging TUBE
Mounting Type THT
Contact Form DPDT (2 Form C)
Coil Voltage 24VDC
Coil Current 22.50mA
Number of Pins 8 Pin
