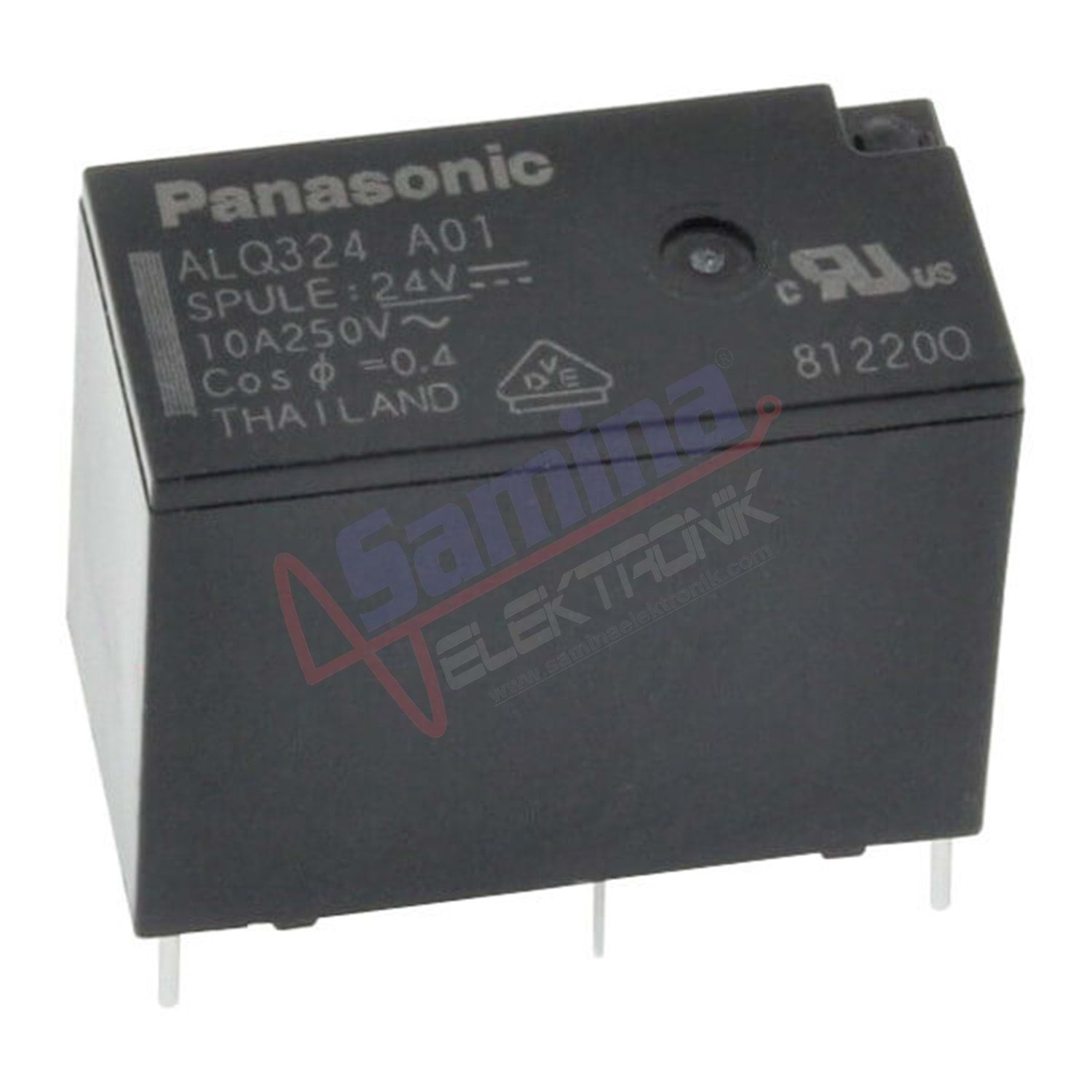

Röle - PANASONIC ALQ324A01RELAY POWER 10A 24VDC 1FormA

Manufacturer PANASONIC COMP.
Relay Type Relay Power Small
Series ALQ
Mounting Type THT
Contact Form SPST-NO (1 Form A)
Coil Type Non Latching
Contact Current (Nom) 5A
Contact Current (Max) 10A
Coil Voltage 24VDC
Coil Current 8.30mA
Contact Voltage 250VAC - Max
Coil Resistance 2.88K Ohms
Coil Power 200mW
Operating Temperature -40°C~+85°C
Number of Pins 4 Pin
Length 20.00mm
Width 10.00mm
Height 15.60mm
Rohs ROHS
Packaging TRAY
