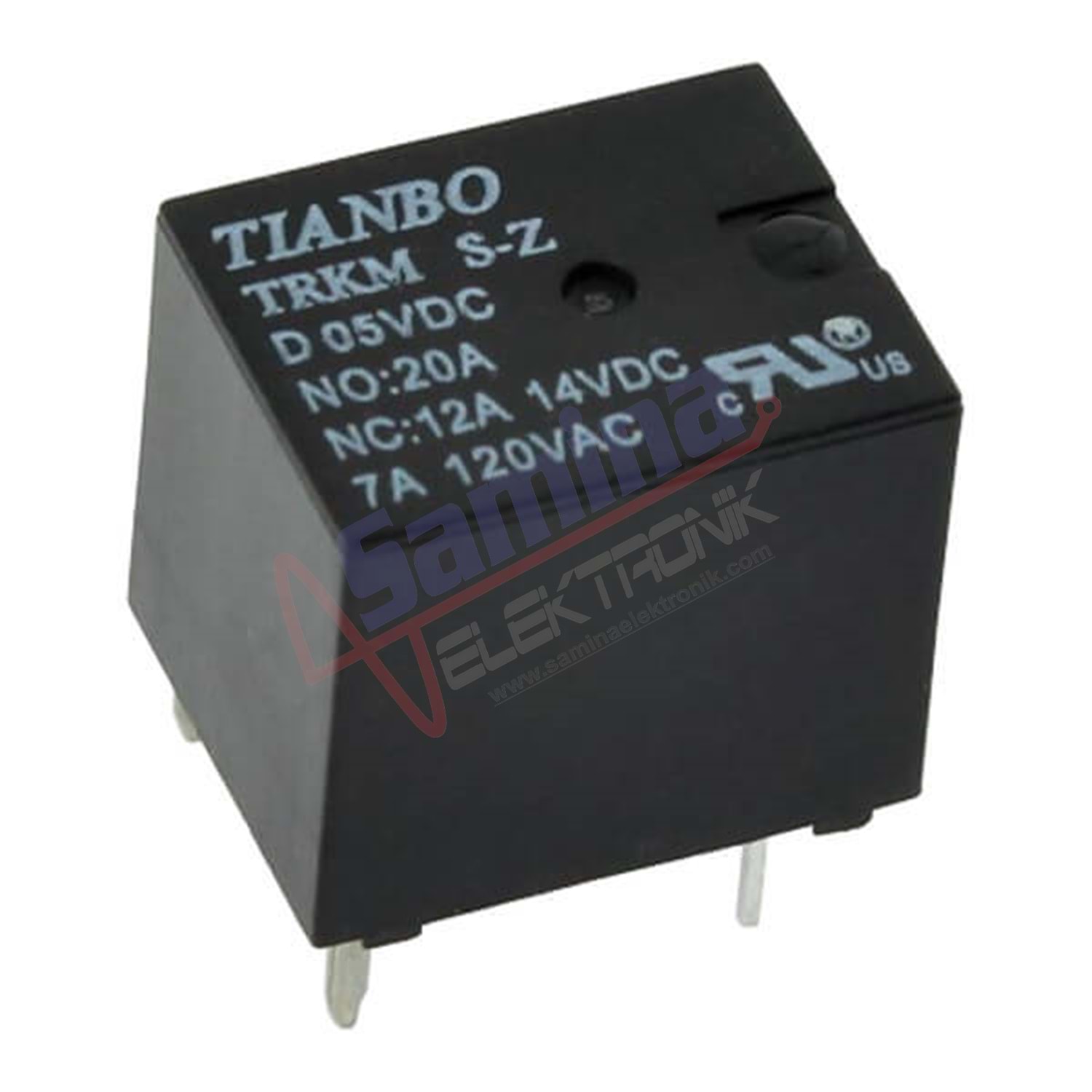

Röle - TIANBO TRKM-S-Z-D-5VDC RELAY POWER 7A 5V ULTRA MINI (JJM)

Rohs ROHS Packaging TUBE Number of Pins 5 Pin Length 15.70mm Height 14.00mm Contact Current (Nom) 7A Coil Voltage 5VDC Coil Power 360mW Relay Type Relay Power Coil Current 71.40mA Contact Voltage 120VAC/14VDC Manufacturer TIANBO Mounting Type THT Contact Current (Max) 25A Width 12.30mm Series TRKM Contact Form SPDT (1 Form C) Coil Type Non Latching Coil Resistance 70 Ohms Operating Temperature -40°C~+85°C
