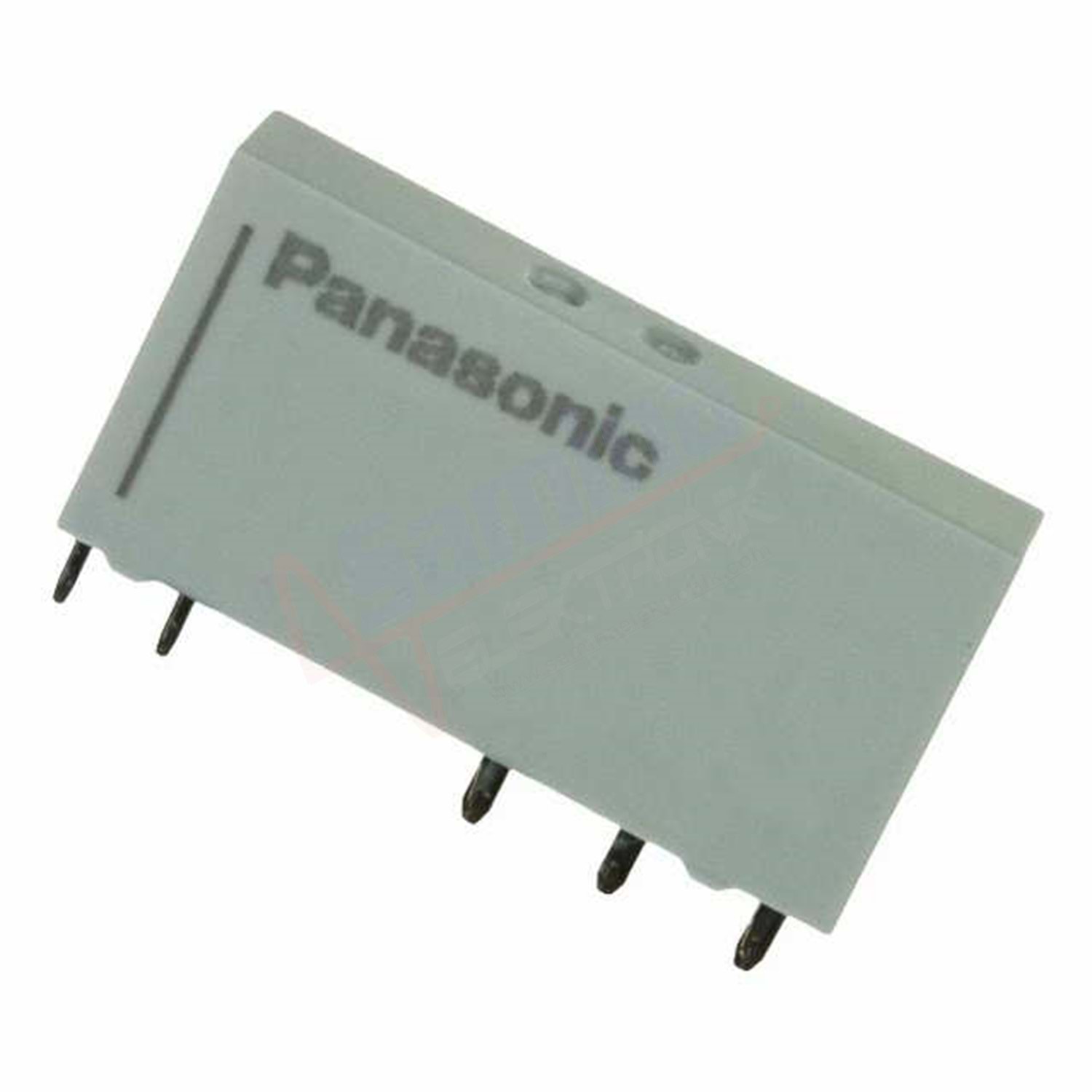

Röle - PANASONIC APF30324 POWER SLIM 6A 24V 1PNC

Length 28.00mm
Relay Type Relay Power Slim
Coil Current 7.10mA
Manufacturer PANASONIC COMP.
Series APF
Contact Form SPDT (1 Form C)
Coil Type Non Latching
Coil Voltage 24VDC
Coil Power 170mW
Operating Temperature -40°C~+85°C
Height 15.00mm
Rohs ROHS
Packaging TUBE
Mounting Type THT
Contact Current (Nom) 6A
Contact Voltage 250VAC
Coil Resistance 3.39K Ohms
Width 5.00mm
Number of Pins 5 Pin
