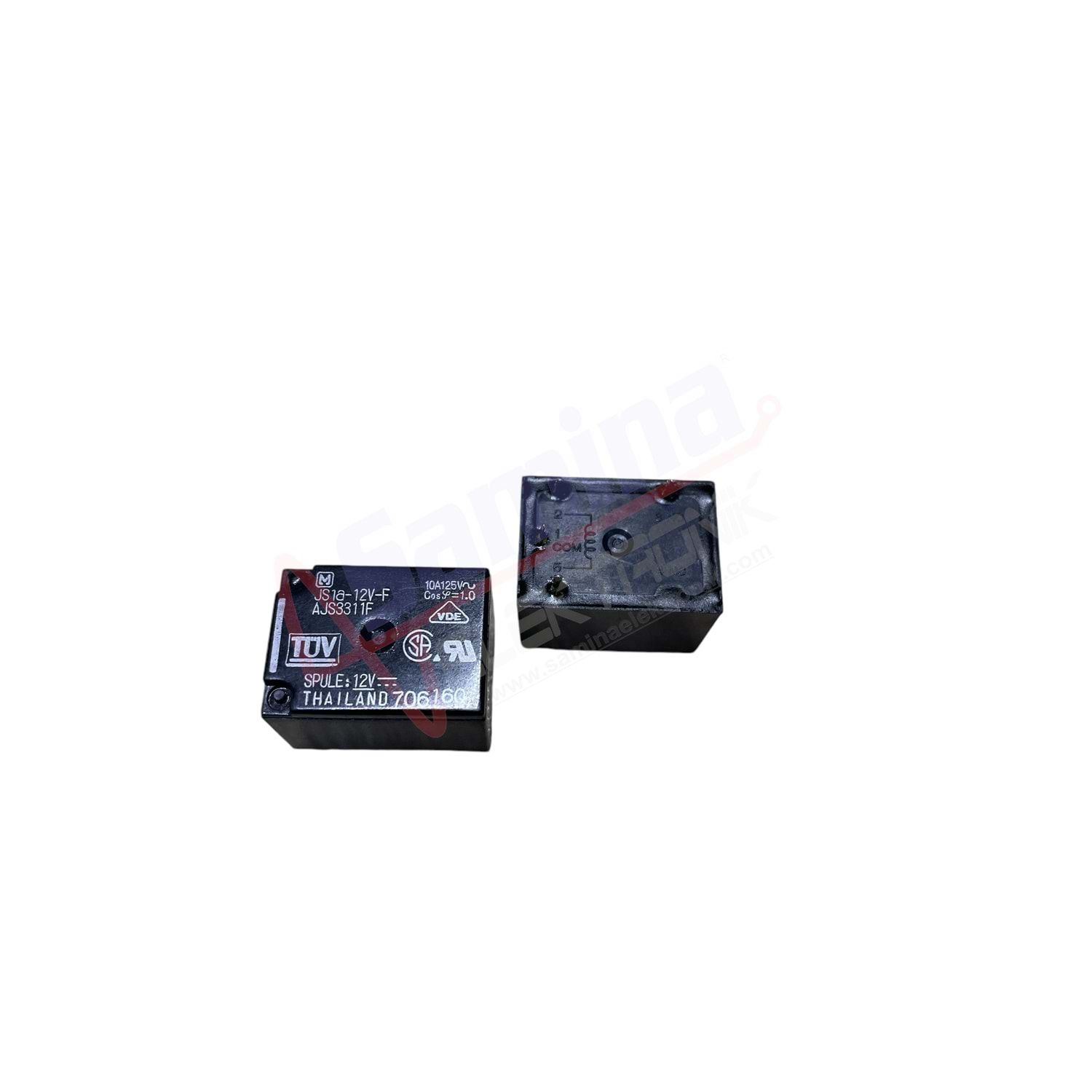

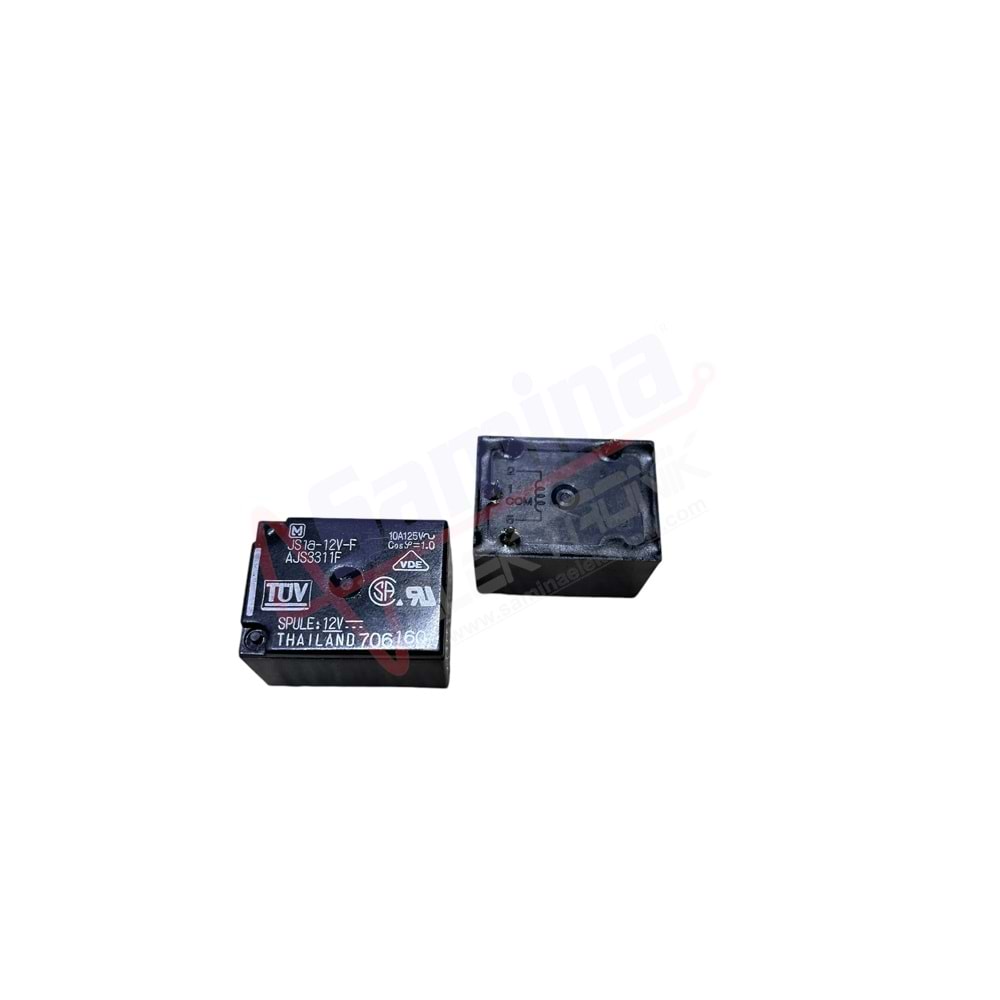

Röle - PANASONIC JS1-B-12V-F POWER 10A 12VDC ULTRA MINI PCB TYPE

Coil Current 30mA
Packaging BULK
Coil Type Non Latching
Coil Resistance 400 Ohms
Width 16.00mm
Relay Type Relay Power
Coil Voltage 12VDC
Rohs ROHS
Mounting Type THT
Contact Current (Max) 10A
Length 22.00mm
Number of Pins 5 Pin
Manufacturer PANASONIC COMP.
Series JS
Contact Form SPDT (1 Form C)
Contact Current (Nom) 6A
Contact Voltage 250VAC/100VDC - Max
Coil Power 360mW
Operating Temperature -40°C~+85°C
Height 16.00mm
