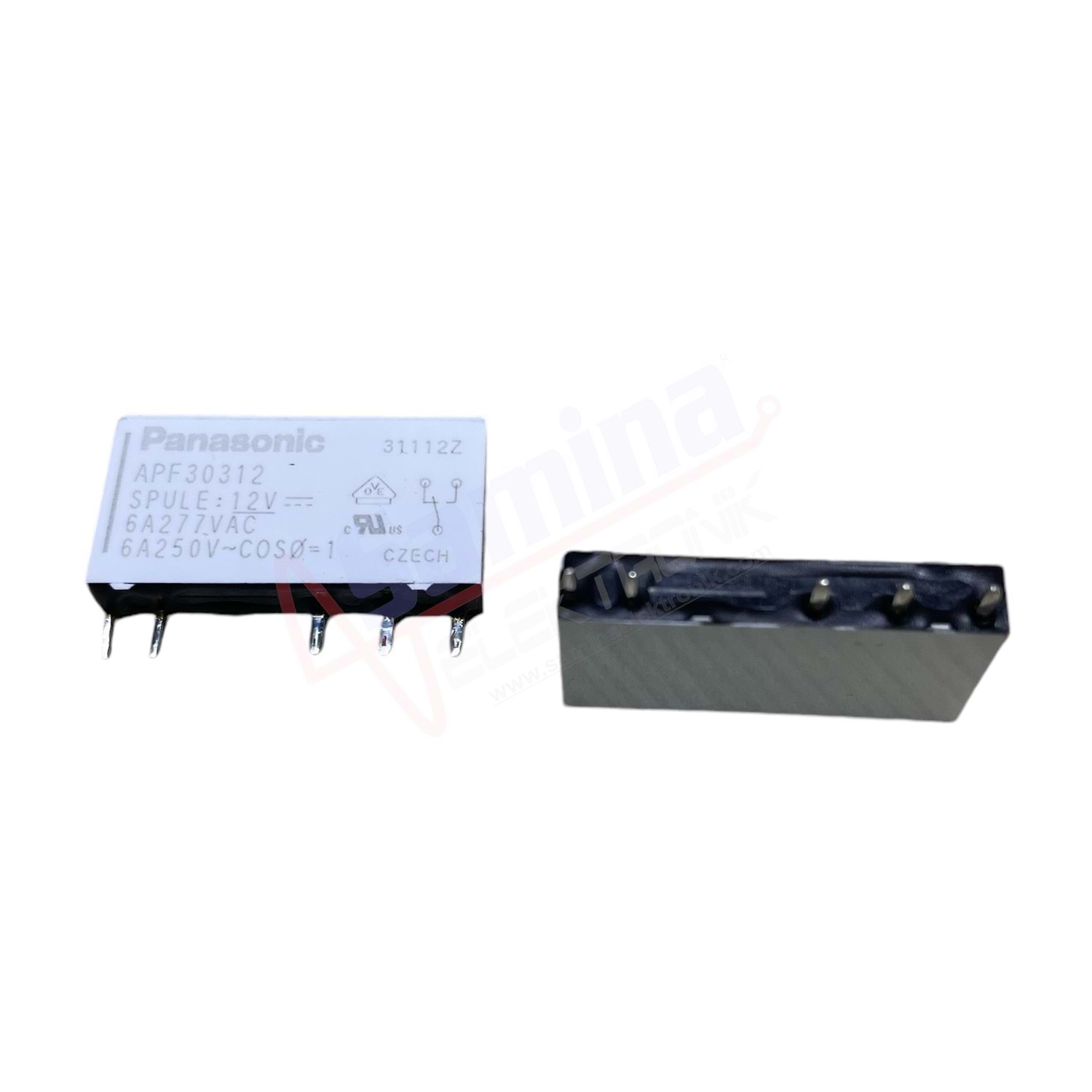

Röle - PANASONIC APF30312 POWER SLIM 6A 12V 1PNC

Number of Pins 5 Pin
Coil Power 170mW
Height 15.00mm
Packaging TUBE
Mounting Type THT
Coil Type Non Latching
Coil Current 14.20mA
Length 28.00mm
Manufacturer PANASONIC COMP.
Relay Type Relay Power Slim
Series APF
Contact Voltage 250VAC
Coil Resistance 847 Ohms
Width 5.00mm
Contact Form SPDT (1 Form C)
Contact Current (Nom) 6A
Coil Voltage 12VDC
Operating Temperature -40°C~+85°C
Rohs ROHS
